NHD-8000 headlight tester

Item No.: 044
Measure light intensity of high beam.
Manually observe the central deviation of the optical
axis of headlight.
INQUIRY
Description Specification Package Details

Instruction

Measure light intensity of high beam.
Manually observe the central deviation of the optical
axis of headlight.
Manually observe the relative position of the turning
point of the cut-off light of low beam.
Manual measure the height of headlight.





Specification

1. Measuring Range
   Central Height of Headlight:50cm ~ 130cm
   Light Intensity: 0 ~ 60,000cd (standard)
   0 ~ 120,000cd (maximum)
2. Resolution
   Light Intensity of High Beam: ±100cd
3. Indication Error
   Light Intensity of High Beam: ±12%
4. Measuring Distance: 30 ~ 50cm
5. Power Consumption: < 0.5W (for complete machine)
6. Dimension:
   590mm(W) 1810mm(H) 590mm(D)
7. Net Weight: 30Kg
8. Operation Condition
   Environmental Temperature: 5 ~ 40℃
   Relative Humidity:Less than 95%
   Atmosphere Pressure:70.0 ~ 106.0KPa






Power Supply

 1 unit of DC 9V
 (Cigar Lighter or Storage Battery can be used).
 If AC power is used, an inverter should be applied.

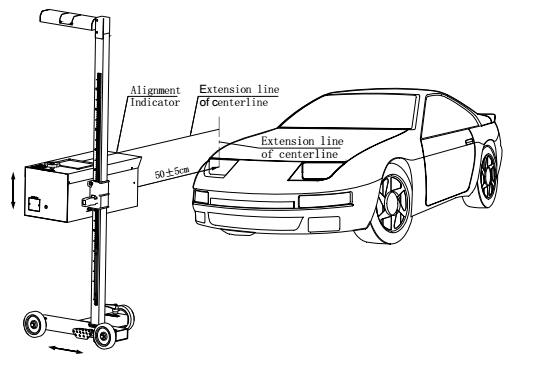

 Ground:
 The Headlight Aimer and the car should be on the same
 ground, the horizontal error of the ground should not be more than 1%.

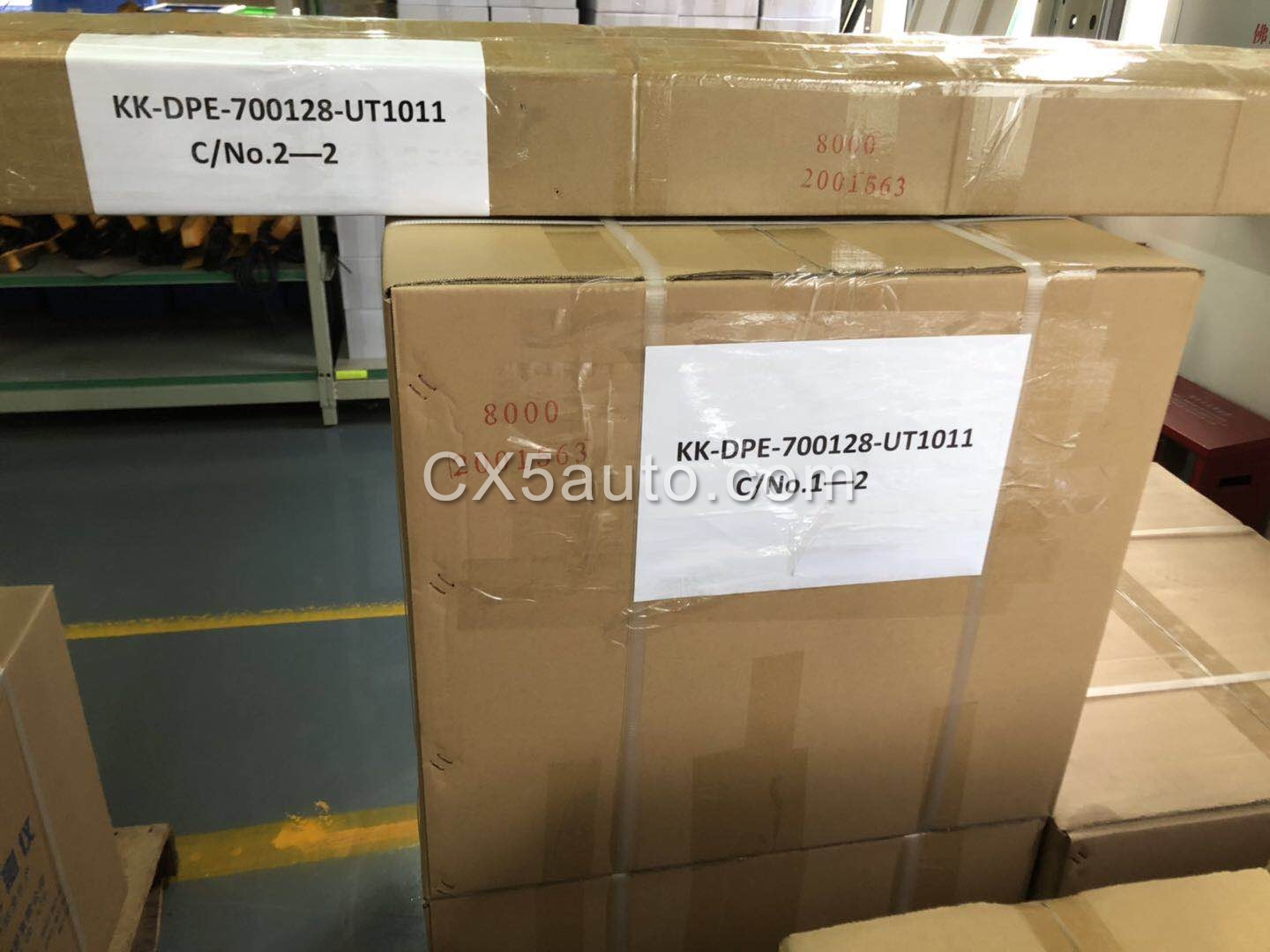

Package Details

Package 1: 66*56*56cm (22.4kg)
Package 2: 184*12*12cm(4.7kg)

Total: 0.23CBM   27.1kg





Warranty: 12 months

Lead time: One week



1. Measuring Range
   Central Height of Headlight:50cm ~ 130cm
   Light Intensity: 0 ~ 60,000cd (standard)
   0 ~ 120,000cd (maximum)
2. Resolution
   Light Intensity of High Beam: ±100cd
3. Indication Error
   Light Intensity of High Beam: ±12%
4. Measuring Distance: 30 ~ 50cm
5. Power Consumption: < 0.5W (for complete machine)
6. Dimension:
   590mm(W) 1810mm(H) 590mm(D)
7. Net Weight: 30Kg
8. Operation Condition
   Environmental Temperature: 5 ~ 40℃
   Relative Humidity:Less than 95%
   Atmosphere Pressure:70.0 ~ 106.0KPa





Package 1: 66*56*56cm (22.4kg)
Package 2: 184*12*12cm(4.7kg)
