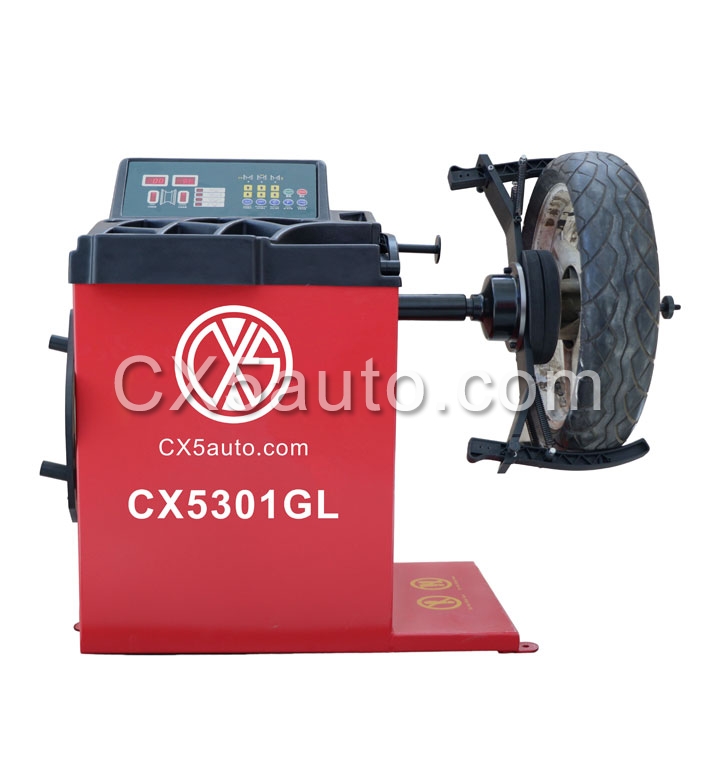

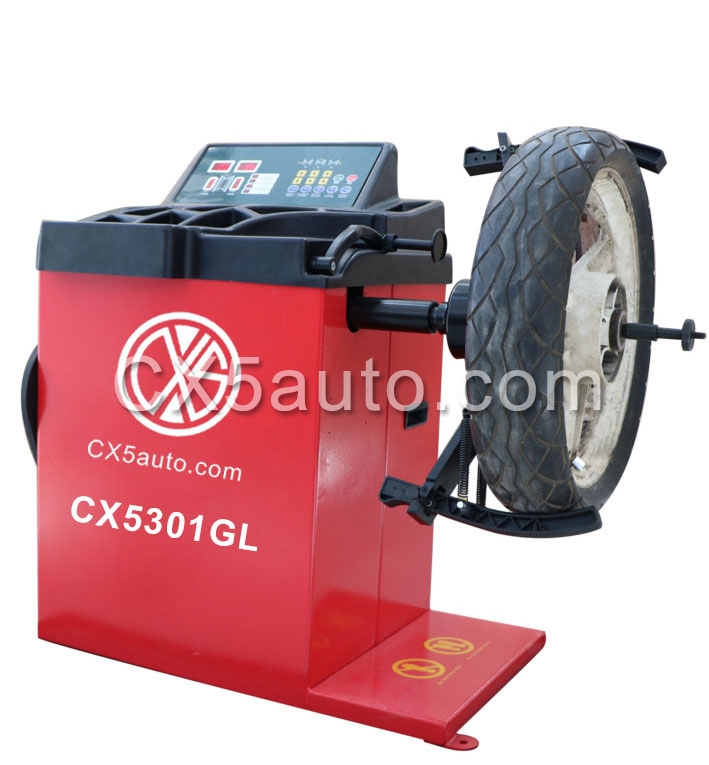

CX5301 Motorcycle wheel balancer
Item No.: 231
Motorcycle special balancing machine.
CX5301GL is equipped with basic modes such as ALU-S1-3 and ALU-1, and is easy to operate. It is a special balancing machine for motorcycle tires.
CX5301GL is equipped with basic modes such as ALU-S1-3 and ALU-1, and is easy to operate. It is a special balancing machine for motorcycle tires.
Description
CX5301GL is equipped with basic modes such as ALU-S1-3 and ALU-1, and is easy to operate. It is a special balancing machine for motorcycle tires.
Features
1. Easy-to-operate keypad.
2. Manual entry.
3. Has a self-calibration procedure.
4. Built-in a variety of balance methods, dynamic, static,
5. ALU-1, ALU-2, ALU-3a
6. Unit (gram to ounce) conversion option.
Specification
Rim diameter range: 10"-30"
Max rim width: 415mm
Max wheel diameter: 1080mm
Distance to spin flange: 10"
Max wheel weight: 65kg
Balancing precision: 1g
Balancing speed: 150-220RPM
Display: Display key pad
Angular Position: 512
Ounce/Gram selectable: Yes
Balancing modes: 8
Shipping weight: 120kg
Voltage: 220V
Packing size: 97*77*115cm

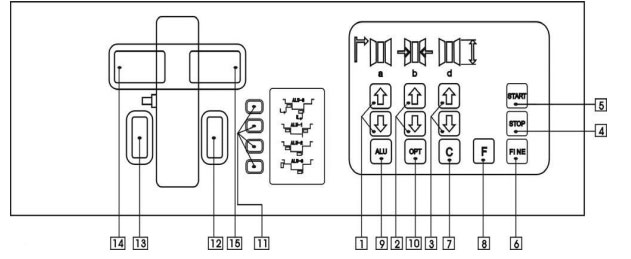

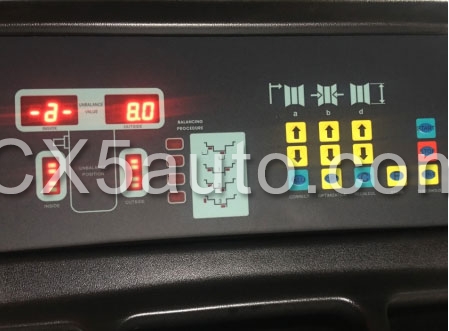

Control panel meaning
1. Distance input key
2. Width input key
3. Diameter input key
4. Emergency stop key
5. Start key
6. Display the actual unbalance value (less than 5 grams)
7. Repeat operation key
8. Dynamic and static mode switching keys
9. Function keys for balance mode selection
10. Choose optimization
11. Display balance method
12. Outer unbalance position display
13. Inner unbalance position display
14. Display the inner unbalance value
15. Display the outer unbalance value
Main key combination functions:
1. Press [START] after the [C]+[F] lights stop flashing
2. In the state of unbalance amount display, [F]+[↓a] unbalance gram and ounce conversion
3. In the state of [b], [C]+[↑b] or [↓b] convert the rim width in millimeters to inches
4. In the state of [d], [C]+[↑d] or [↓d] rim diameter conversion between mm and inches [OPT] unbalance optimization
