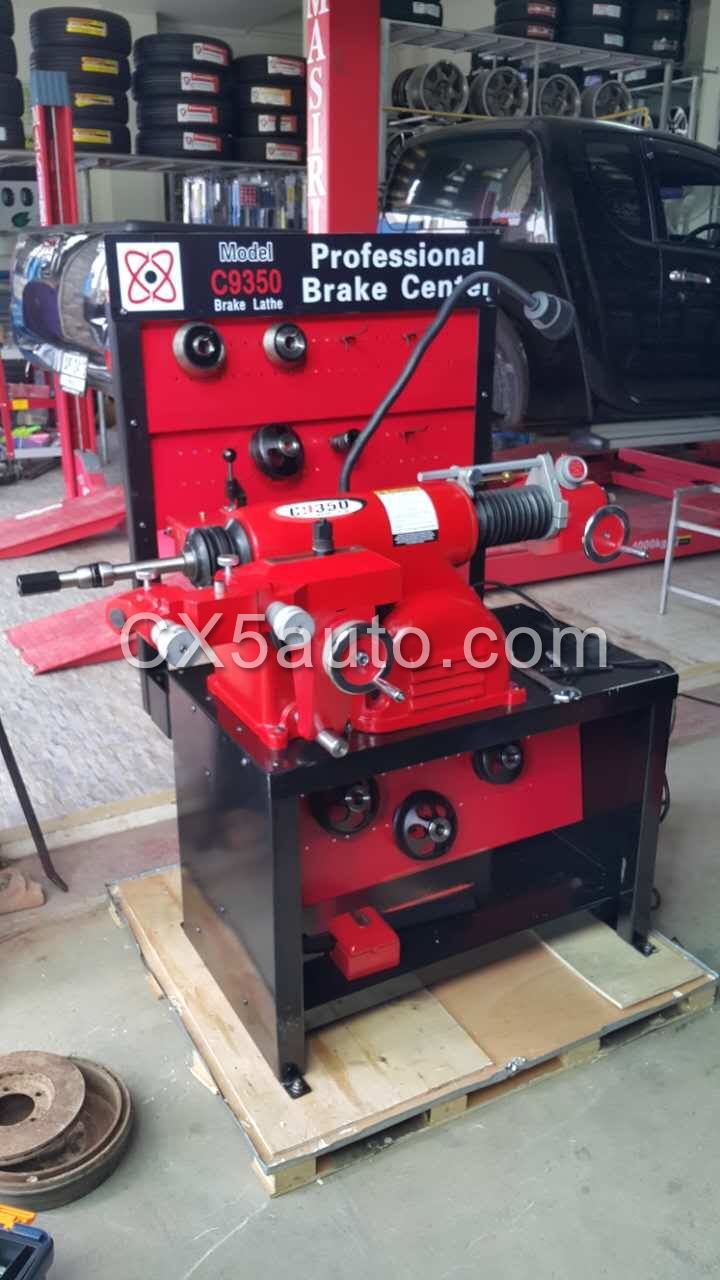

C9350 Multi-speed Disc Brake Lathe Machine

Item No.: 011
For small car or mini bus.
INQUIRY
Description Specification Accessories Package


Instruction


A Brake Lathe Machine is a valuable piece of machinery to have in your workshop that can cure noise and vibration problems, often prolonging the life of braking systems.

Brake Lathe, comes with all the tools to get your Drums and Disc turned.



Specification


Spindle travel: 6-7/8"/175mm

Spindle speed: 70,88,118RPM

Spindle Feed Speed: Min 0.002 Inch Per Revolution/0.05mm/Rev

                                      Max 0.02 Inch Per Revolution/0.5mm/Rev

Cross Feed Speed: Min 0.002 Inch Per Revolution/0.05mm/Rev

                                   Max 0.02 Inch Per Revolution/0.5mm/Rev

Handwheel Graduations: 0.002"/0.05mm

Rotor Diameter: 7"/180mm-15"/381mm

Rotor Thickness: 1-7/8"/48mm

Drum Diameter: 6"/152mm-28"/711mm

Drum Depth: 6-7/8"/175mm

Motor: 220V/380V,50/60Hz

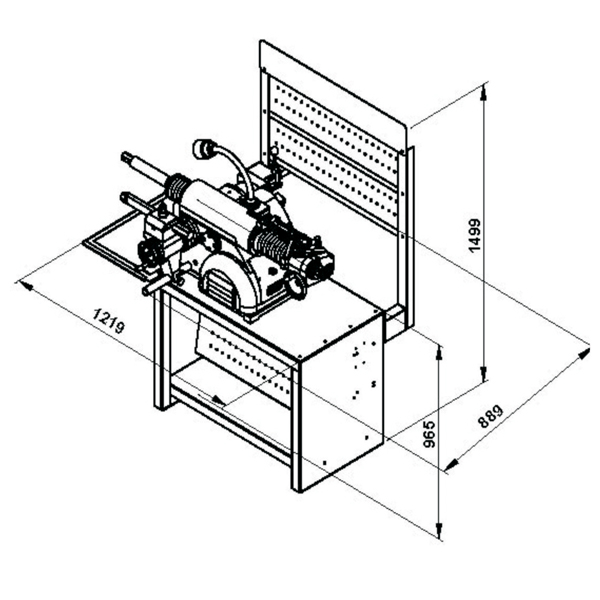

Packing size: 970mm*920mm*1140mm=1.02m³

Weight: 290kg

Transport Package: Plywood

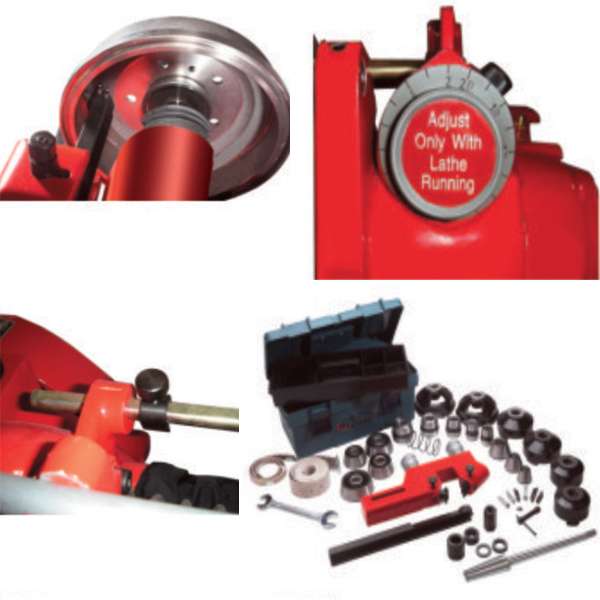

Feature

1. Quickly, accurately and efficiently to cutting rotor.

2. Quickly, accurately and efficiently to cutting drum.

3. Fast and slow setting allow cutting rotor.

4. Finitely adjustably setting allow cutting drum.

5. Three kinds of speed to choice for spindle speed.

6. Position of stop make the lathe stop automatic after the cutting.

7. A convenient design allows to quickly change from rotor to drum.

8. Fully equipped adapter package.






Accessories






Package




Spindle travel: 6-7/8"/175mm

Spindle speed: 70,88,118RPM

Spindle Feed Speed: Min 0.002 Inch Per Revolution/0.05mm/Rev

                                      Max 0.02 Inch Per Revolution/0.5mm/Rev

Cross Feed Speed: Min 0.002 Inch Per Revolution/0.05mm/Rev

                                   Max 0.02 Inch Per Revolution/0.5mm/Rev

Handwheel Graduations: 0.002"/0.05mm

Rotor Diameter: 7"/180mm-15"/381mm

Rotor Thickness: 1-7/8"/48mm

Drum Diameter: 6"/152mm-28"/711mm

Drum Depth: 6-7/8"/175mm

Motor: 220V/380V,50/60Hz

Packing size: 970mm*920mm*1140mm=1.02m³

Weight: 290kg
