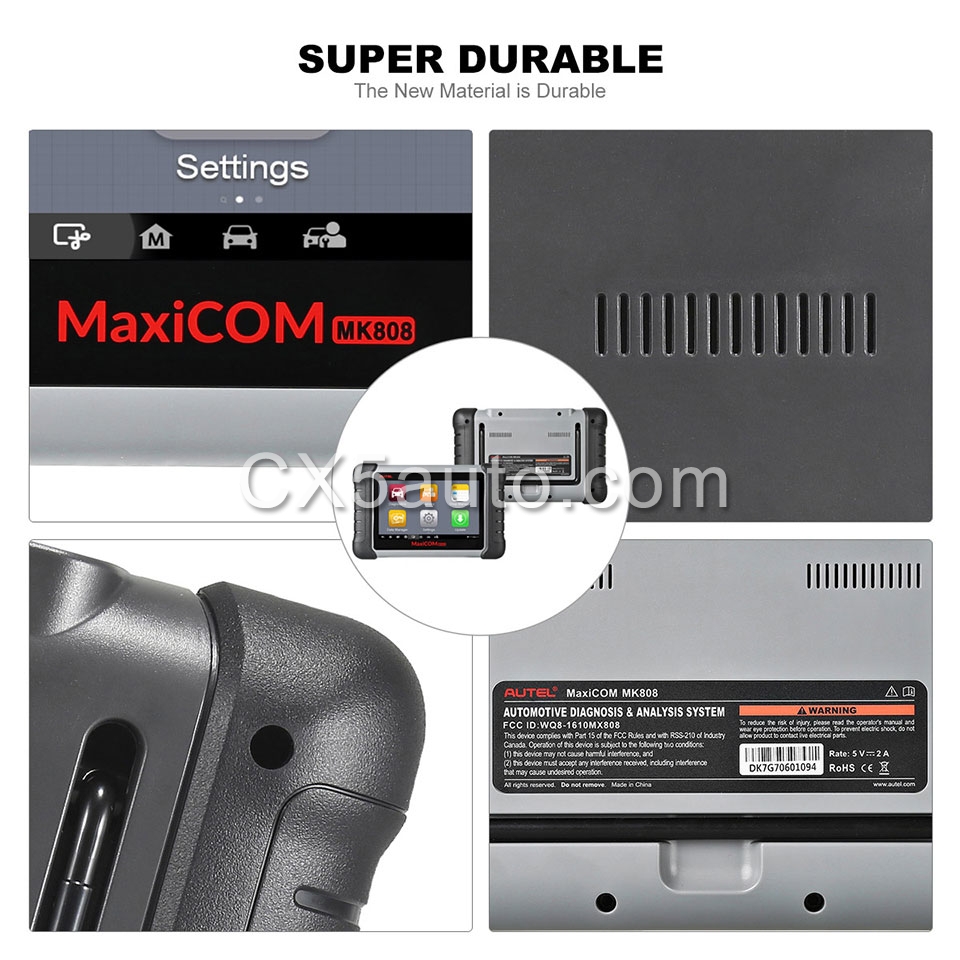

Autel MaxiCOM MK808 Automotive Scanner Supports IMMO/EPB/SAS/BMS/TPMS/DPF Service Diagnostic Tool Seven-inch Touchscreen Android Tablet With Update

Item No.: 198
Easy to Use
Wider Compatibility
Operates Smoothly and Fast
Special Functions
Additional Features
Portable Scanner
1-year Warranty and Free Updates
Description Pacakge


1.Read/clear codes for all available systems
2.display live data in text, graph & analog for easy data review
3.Support  IMMO functions forced diesel particulate filter regeneration and injector adjustments
5.Supports battery registration and reset
6.Relearn parking brake pad position after replacement
7.reset Steering Angle Sensor
8.reset service mileage and service intervals
9.TPMS sensor relearn
10.Extensive vehicle coverage for Asian and European vehicles,1996 and newer
11.Auto VIN technology automatically identifies the vehicle’s make, model and year.
12.Update Online


Recommended Use: Indoor
Operating System: Android™ 4.4.4
Processor: Cortex-A9 processor(1.5 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0
                     USB 2.0
                     Micro SD card (supports up to 32GB)
Sensors: Ambient light sensor for brightness auto adjust
Audio Input/Output: Input: N/A
                                Output: Beep
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
                               Charges via 5 VDC power supply
Tested Battery Life:  Around 4.5 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp: 0 to 55°C(14 to 131°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
Operating Humidity    5%-95%non-condensing
Dimensions(WXHX D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight: 788 g (2.42 lb.)
Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

25 Hot Service Functions
The diagnostic tool performs 25 service functions that every mechanic wants for various scheduled service and maintenance performances including:

Oil Reset: Turn off the oil light, and reset the service mileage. So you won’t forget to change the oil when it’s due.
EPB: Remind you to reset the brake pad, especially if you have replaced it.
TPMS: Read TPMS data and point out issues related if there are any.
BMS: Reset a battery after you have replaced it.
Brake Bleed: Keep the tires from locking up immediately when there are brakes.
DPF: Help you clear the blockage in the DPF filter, to meet emission standards.
Immo Keys: This function is mainly used to disable the lost vehicle keys, and create a new replacement key fob, to protect your car from being stolen.
Injector: Read injector related problems and adjusts them.
SAS: Calibrating and resetting the position of the steering is just a click away.
And Injector coding, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Zize, TEC Learn, Trans Adaption are all avaiable.
There are a lot more functions waiting for you to explore.

Package List

USB External Power Adapter
User Manual
Quick Reference Guide
Main cable
Carry case
Mini USB Cable

Warranty: 12 months

Lead time: Have stock  (by DHL or Fedex about 7 days arrive your workshop)


Weight: 3.6KG
Package: 38cm*30cm*12.5cm     ( Inch: 14.96*11.81*4.92 )
DHL: 4.5kg
