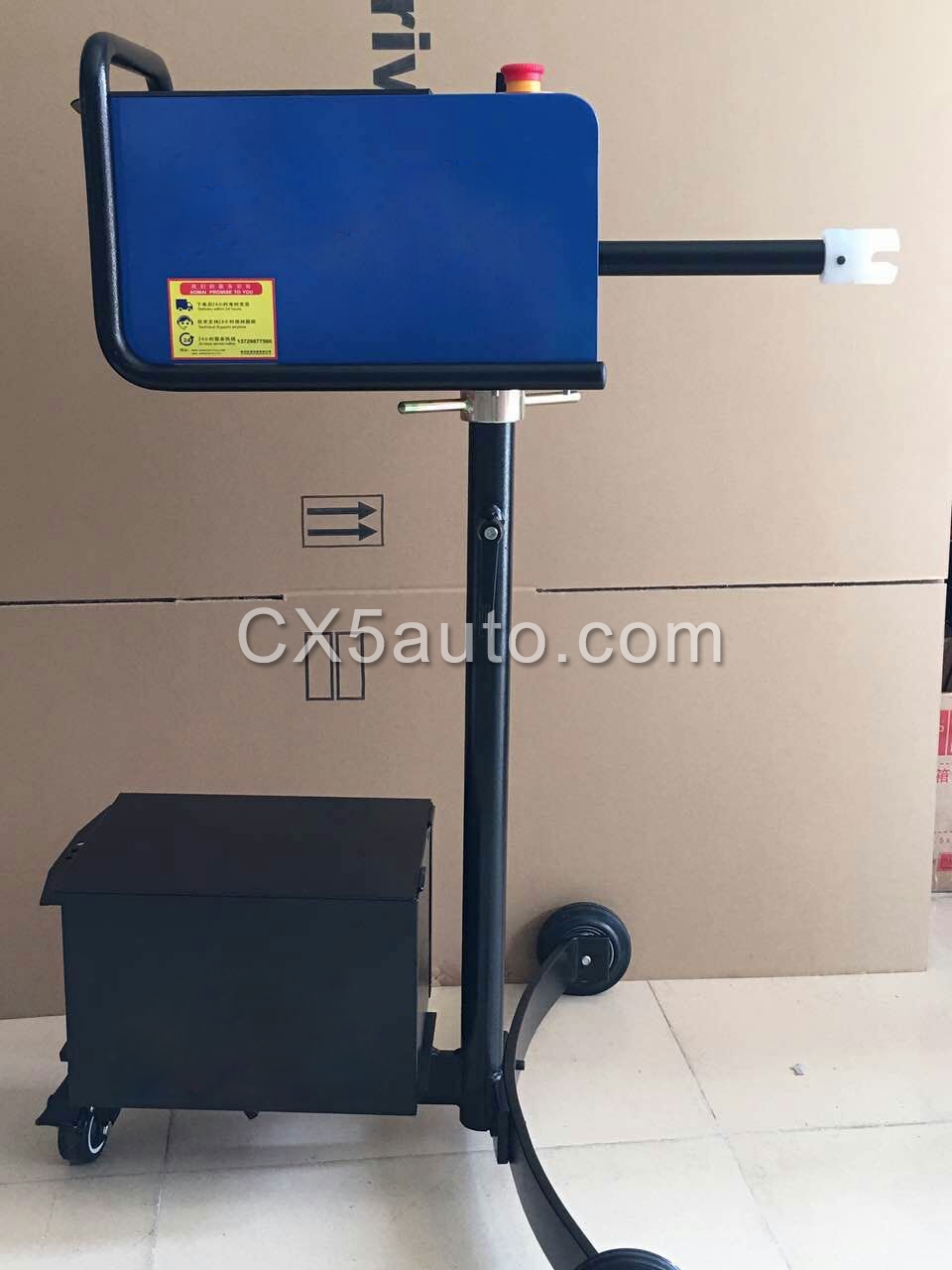

AM-8700 On car brake disc lathe

Item No.: 102
Color blue and yellow.
INQUIRY
Description Specification Accessories Package


Specification

Working height min/max: 1/1.25m
Drive speed: 98rpm
Motor power: 450/750W
Electrical specifications: 220V/50hz
Ambient temperature range: -25 to 50℃
Thickness of brake disc: 6-40mm
Cutting depth per knob: 0.005-0.015mm
Cutting precision: ≤0.00-0.003mm
Brake disc surface roughness Ra: 1.5-2.0µm
Packing size: 0.2CBM
Paper carton: 110*53*34cm=0.198m³
Net weight: 50kg
Gross weight: 73kg

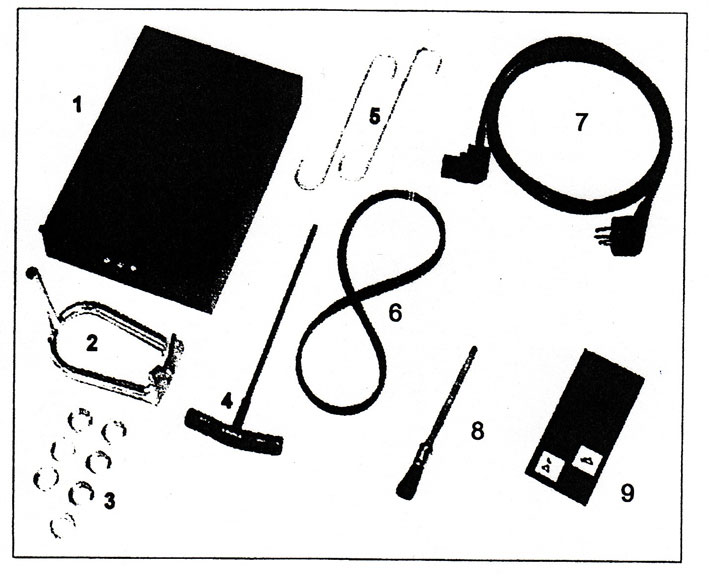

Accessories
1. Drawer
2. Drive adapter
3. Conical Ring
4. Hex T-spanner
5. S-hook
6. Sliencer band
7. Cable
8. Brush
9. Tool bits

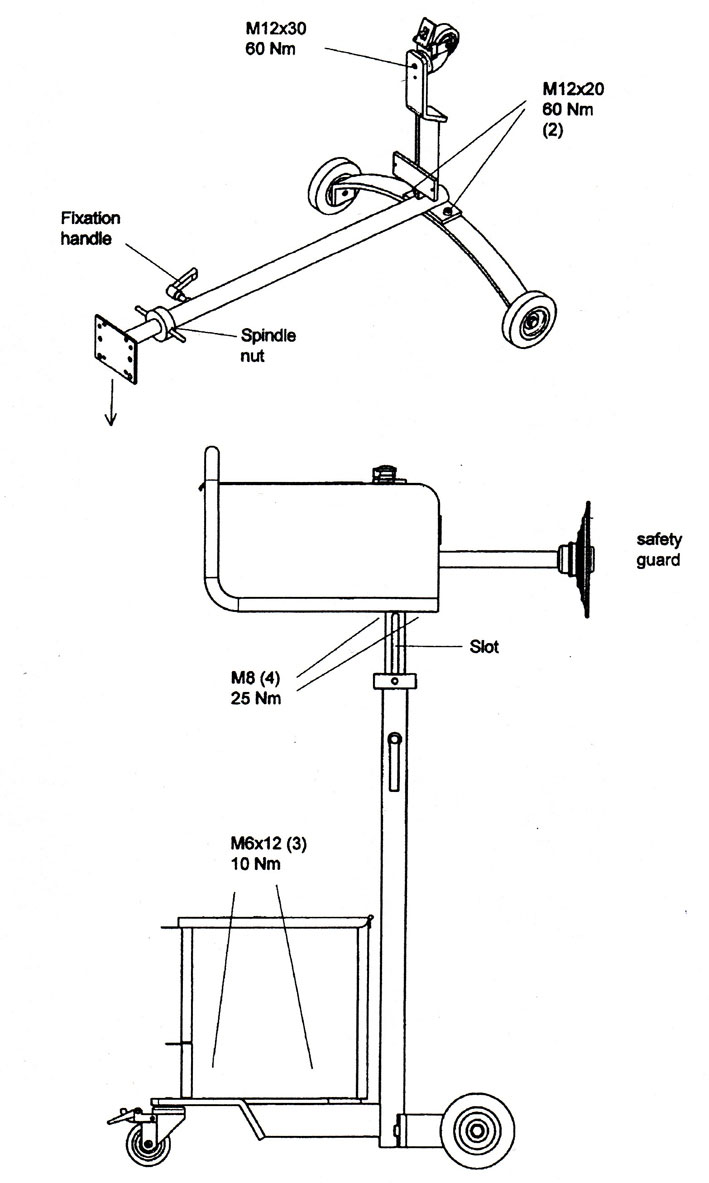

Installation






Package







Color Blue




Working height min/max: 1/1.25m
Drive speed: 98rpm
Motor power: 450/750W
Electrical specifications: 220V/50hz
Ambient temperature range: -25 to 50℃
Thickness of brake disc: 6-40mm
Cutting depth per knob: 0.005-0.015mm
Cutting precision: ≤0.00-0.003mm
Brake disc surface roughness Ra: 1.5-2.0µm
Packing size: 0.2CBM
Paper carton: 110*53*34cm=0.198m³
Net weight: 50kg
Gross weight: 73kg


1. Drawer
2. Drive adapter
3. Conical Ring
4. Hex T-spanner
5. S-hook
6. Sliencer band
7. Cable
8. Brush
9. Tool bits
